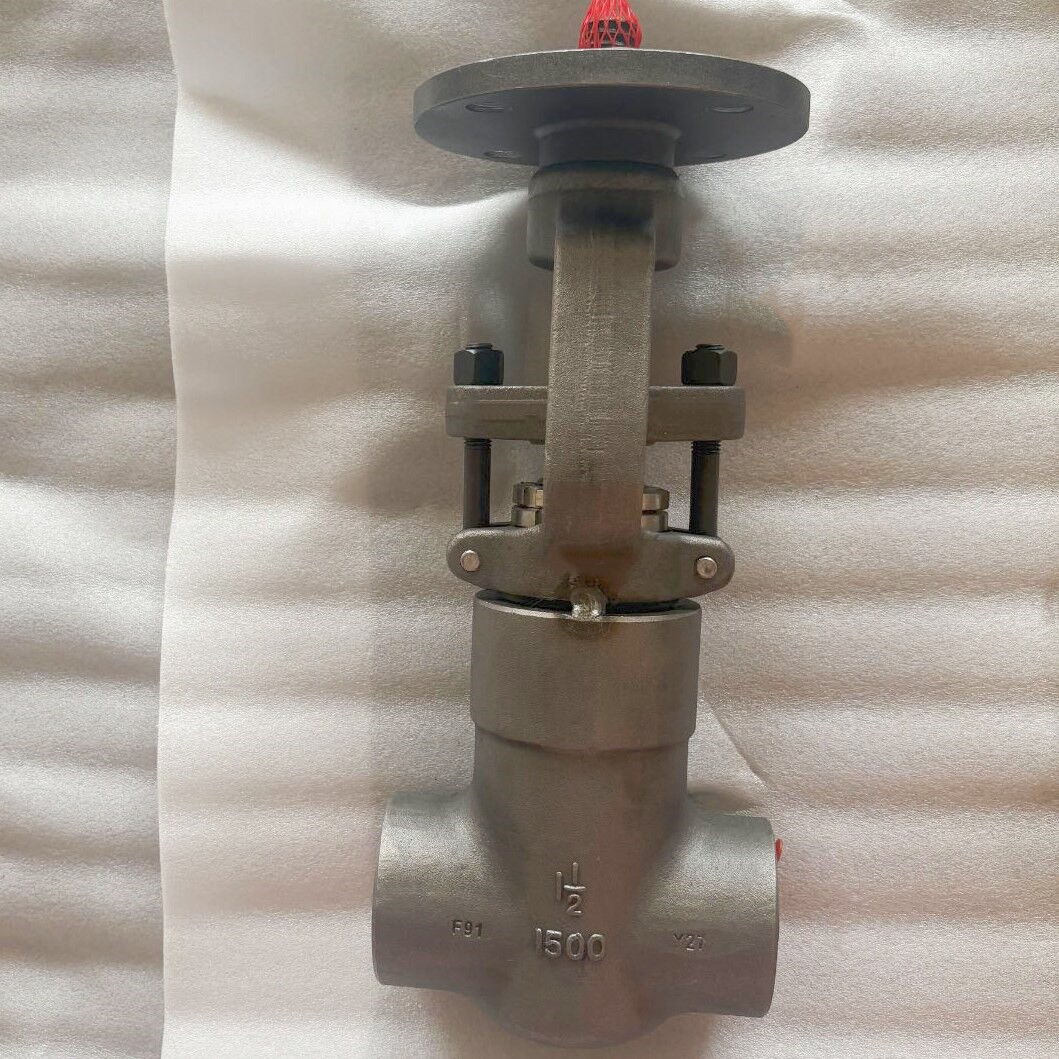

ASME B16.34 Gate Valve, A182 F91, 1-1/2 IN, 1500 LB, SW, PSB
We are a reliable alloy steel gate valve supplier in China, offering high-performance valves designed to ASME B16.34 standards. This 1-1/2 inch gate valve features a durable ASTM A182 F91 alloy steel body, making it ideal for high-temperature and high-pressure applications. Rated for Class 1500 LB, it includes a socket weld connection for secure installation and a pressure seal bonnet for enhanced leak prevention under extreme conditions. The outside screw and yoke (OS&Y) design ensures easy operation and visibility of the valve position, making it suitable for power plants, refineries, and critical service pipelines.
- Model No.
- GTV-20250718
- Categories
- Gate Valves, Pressure Seal Gate Valve
- Tags
- ASME B16.34 Gate Valve, ASTM A182 F91 Gate Valve, 1-1/2 Inch Gate Valve
Detail Information
Valve Description:
ASTM A182 F91 Gate Valve, Socket Welding, Pressure Seal Bonnet, Bare Shaft, OS&Y.
Design: ASME B16.34
Body: ASTM A182 F91
Nominal Size: 1-1/2 Inch
Nominal Class: 1500 LB
End Connection: ASME B16.11
Face to Face: MFG'S
Test and Inspection:
Product Range:
Body Material: Alloy Steel
Normal Diameter: 1/2 Inch - 4 Inch (DN15-DN100)
End Connection: FLANGE, BW, SW, NPT
Pressure Range: 1500 LB-2500 LB (PN250-PN420)
Working Temperature: -29°C - 500°C
Technical Parameters and Characteristics:
Product | Gate Valve |
Nominal Diameter | 1/2 Inch -4 Inch |
Design Temp. | Down to -29°C |
Design Pressure | PN250-PN420 |
Material | Alloy Steel |
Design Standard | ASME B16.34 |
Face to Face | MFG'S |
Connection End | FLANGE, BW, SW, NPT |
Test Standard | |
Package | Plywood |
Application | water, oil and gas |
Certificate | ISO 9001, ISO 14001, ISO 45001, CE |
