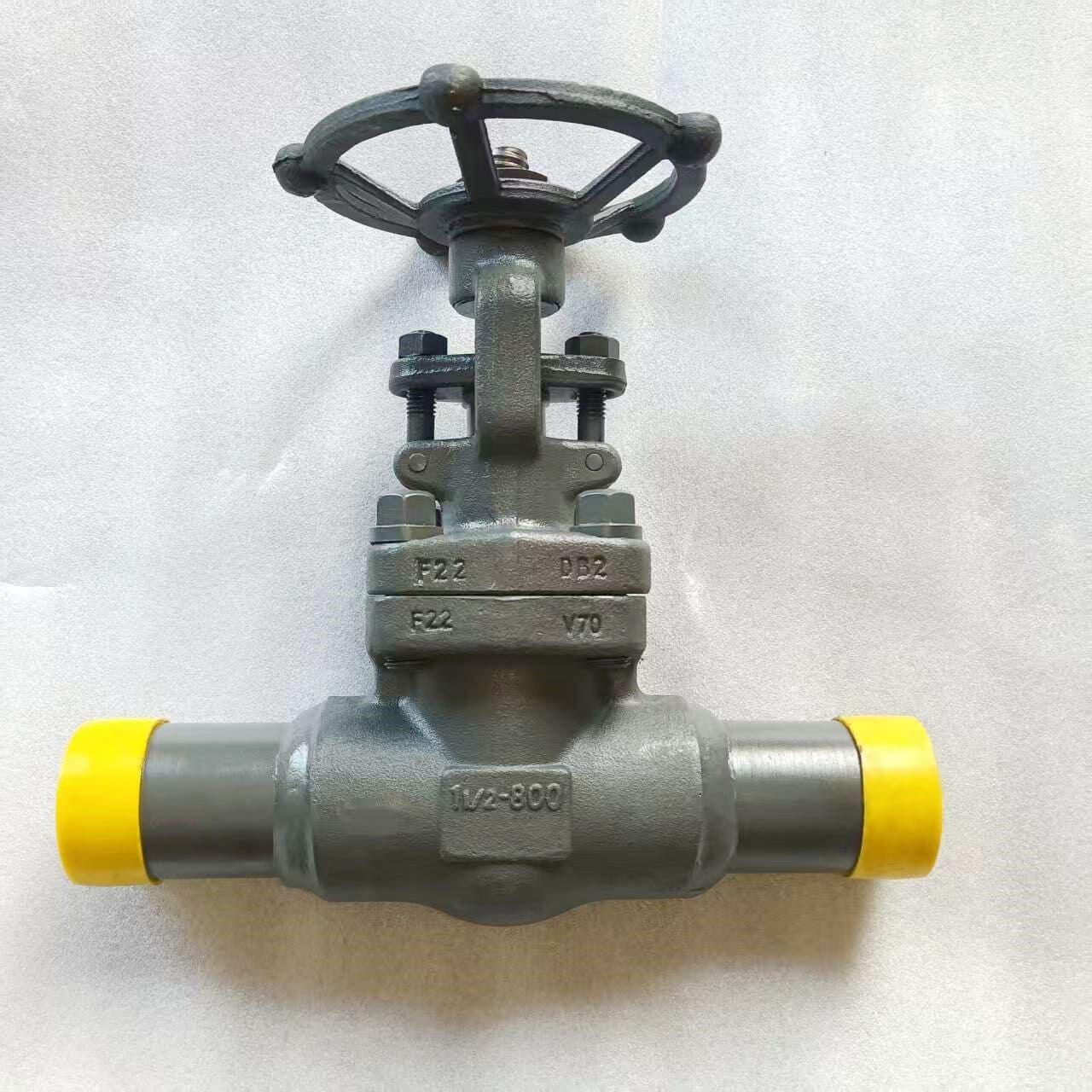

API 602 Gate Valve, A182 F22, 1-1/2 Inch, Class 800 LB, OS&Y

As a trusted API 602 gate valve manufacturer in China, we supply high-quality valves with forged ASTM A182 F22 alloy steel bodies for superior strength and temperature resistance. Our 1-1/2 inch (DN40) valves are rated for Class 800 LB (PN130) service and feature an OS&Y design for dependable operation and easy visual indication. With ASME B16.25 end connections, these valves ensure precise fit, safety, and durability in high-pressure, high-temperature environments, making them ideal for power plants, refineries, and other demanding industrial applications.

Request a quote

Model No.: GTV-20250816-01
Categories: Gate Valves
Tags: API 602 Gate Valve , ASTM A182 F22 Gate Valves , 1-1/2 Inch Gate Valve

Detail Information

Valve Description:
ASTM A182 F22 Gate Valve, SW + 2 PE Nipples on both sides end, OS&Y, Handwheel.
Design: API 602
Body: ASTM A182 F22
Nominal Size: 1-1/2 Inch
Nominal Class: 800 LB
End Connection: ASME B16.25
Face to Face: MFG'S
Test and Inspection: API 598

Product Range:
Body material: Alloy Steel
Normal Diameter: 1/2 Inch - 4 Inch (DN15 - DN100)
End Connection: FLANGE, BW, SW, NPT
Pressure Range: 150 LB-2500 LB (PN 16-PN 420)
Working Temperature: -29°C - 500°C

Technical Parameters And Characteristics:

Product	Gate Valve
Nominal diameter	1/2 Inch - 4 Inch
Design temp.	Down to -29°C
Design pressure	PN16-PN420
Material	Alloy Steel
Design Standard	API 602
Face to Face	MFG'S
Connection End	FLANGE, BW, SW,NPT
Test Standard	API 598
Package	Plywood
Application	water, oil and gas
Certificate	ISO 9001, ISO 14001, ISO 45001, CE
