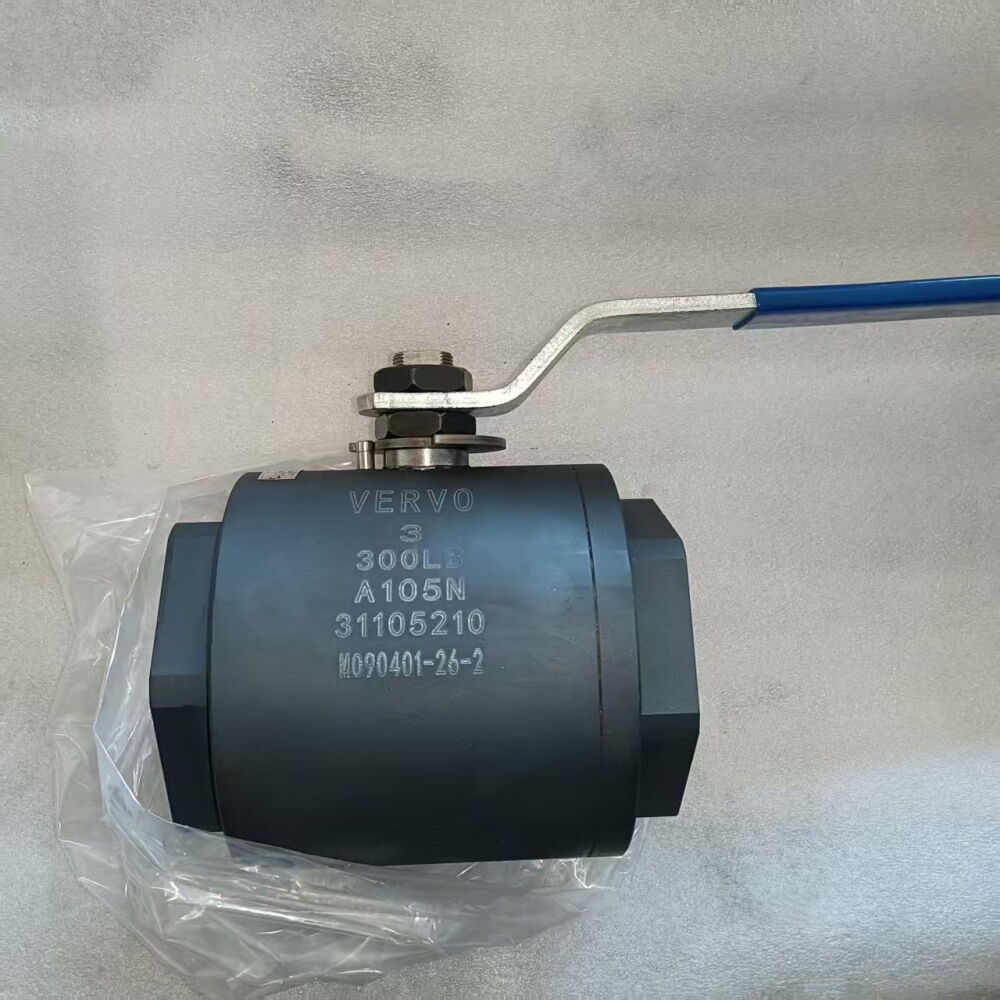

API 608 Floating Ball Valve, A105N, 3 Inch, CL300, Lever
- Model No.
- FBV-20251201
- Categories
- Ball Valves
- Tags
- API 608 Ball Valve , Floating Ball Valves , ASTM A105N Ball Valve
Detail Information
Valve Description:
Floating Ball Valve, ASTM A105N, FNPT, 3 IN, 300 LB, Two-piece.
Design: API 608
Body: ASTM A105N
Sizes: 3 Inch, DN80, 80 mm
Nominal Class: 300 LB
End Connection: ASME B1.20.1
Operation: Lever
Face to Face: MFG'S
Test and Inspection: API 598
Product Range:
Body Material: Carbon Steel
Normal Diameter: 2 Inch - 4 Inch (DN50 - DN100)
End Connection: FNPT
Pressure Rating: 150LB - 2500LB
Working Temperature: -29°C - +120°C
Technical Parameters And Characteristics
|
Product |
Ball Valve |
|
Nominal Diameter |
2 - 4 Inch (DN50 - DN100) |
|
Design Temp. |
Down to -29°C |
|
Design Pressure |
150LB-2500LB |
|
Material |
Carbon Steel |
|
Design Standard |
API 608 |
|
Face to Face |
MFG'S |
|
Operation |
Lever |
|
Connection End |
FLANGE |
|
Test Standard |
API 598 |
|
Package |
Plywood |
|
Applicable Media |
Water, Steam, Oil |
|
Application |
The oil and gas industry |
|
Certificate |
ISO 9001, ISO 14001, API 6D, CE |
