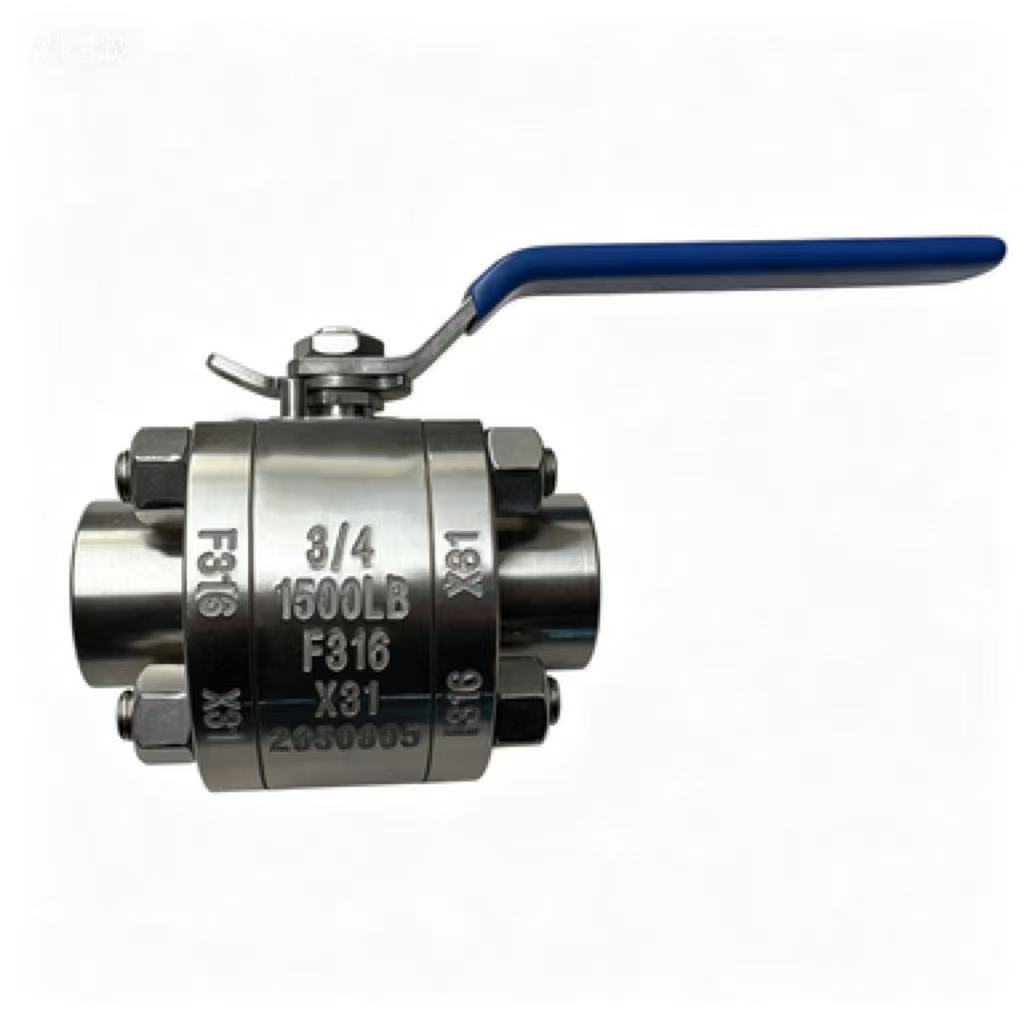

Forged Floating Ball Valve, API 608, F316, 3/4 IN, 1500 LB

Three-Piece Ball Valve is designed in accordance with API 608 standards, manufactured from high-quality ASTM A182 F316 stainless steel for excellent corrosion resistance and durability. With a compact 3/4 inch (DN20) size and high-pressure Class 1500 LB rating, it ensures reliable performance in demanding industrial applications. Featuring socket weld (SW) ends, it provides secure and leak-free pipeline connections. The lever-operated mechanism allows smooth and quick shut-off control, enhancing operational efficiency and safety. Ideal for oil, gas, chemical, and process systems, this forged floating ball valve delivers long service life and stable sealing performance. As a leading China Forged Floating Ball Valve Manufacturer, we are committed to precision engineering and high-quality valve solutions.

Request a quote

Model No.: FBV-2026041701
Categories: Ball Valves ,Floating Ball Valve
Tags: Forged Steel Ball Valves , Floating Ball Valves , API 608 Ball Valve

Detail Information

Valve Description:
Three-piece Forged Steel Floating Ball Valve, ASTM A182 F316, 3/4 Inch, 1500 LB, SW.
Design: API 608.
Body: ASTM A182 F316.
Nominal Size: 3/4 Inch, DN20
Nominal Class: 1500 LB.
End Connection: ASME B16.11.
Operation: Lever.
Face to Face: MFG'S.
Test and Inspection: API 598.

Product Range:
Body Material: Stainless Steel.
Normal Diameter: 1/2 - 2 Inch (DN15 - DN50).
End Connection: SW, FNPT, BW.
Pressure Rating: 150 LB - 2500 LB
Working Temperature: -29°C - +120°C.

Technical Parameters and Characteristics

Product Item	Floating Ball Valve
Nominal Diameter	1/2 - 2 Inch (DN15 - DN50).
Design Temp.	Down to -29°C
Design Pressure	150 LB - 2500 LB
Material	Stainless Steel
Design Standard	API 608
Face to Face	MFG'S
Operation	Lever
Connection Ends	SW, FNPT, BW.
Test Standard	API 598
Package	Plywood
Applicable Media	Water, Steam, Oil
Application	The oil and gas industry
Certificate	ISO 9001, ISO 14001, API 6D, CE
