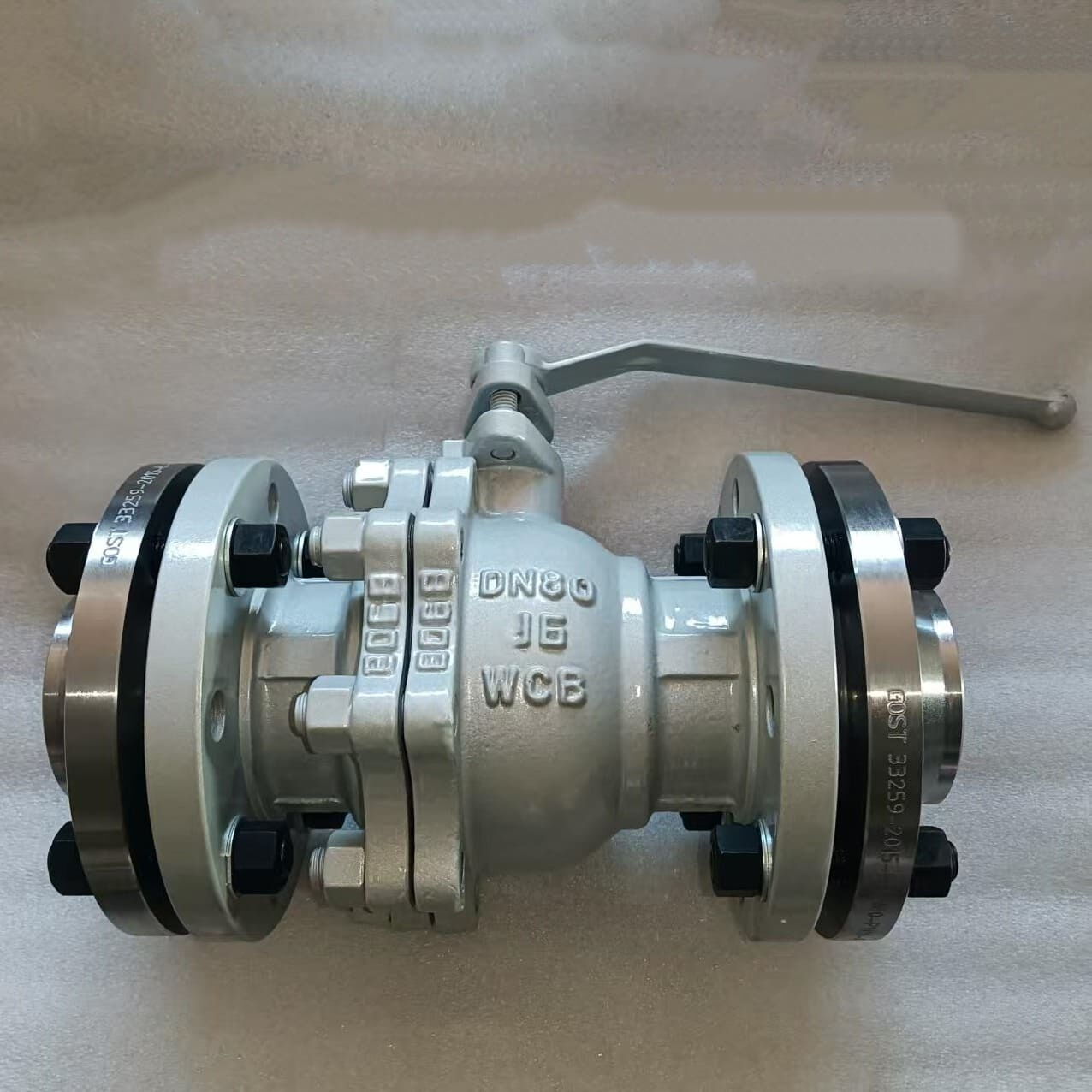

ASTM A216 WCB Floating Ball Valves, GB/T 12237, DN80, PN16
- Model No.
- FBV-20251122
- Categories
- Ball Valves
- Tags
- Floating Ball Valves , GB/T 12237 Ball Valve , ASTM A216 WCB Ball Valve
Detail Information
Valve Description:
Floating Ball Valve, WCB, Flanged, Companion Flange, DN80, PN16, Two-piece.
Design: GB/T 12237
Body: ASTM A216 WCB
Nominal Size: DN80
Nominal Class: PN16
End Connection: Gost 33259
Operation: Lever
Face to Face: JB/T 1686, GB/T 12221
Test and Inspection: GB/T 13927
Product Range:
Body Material: Carbon Steel
Normal Diameter: 2 Inch - 32 Inch (DN50 - DN800)
End Connection: Flange
Pressure Rating: PN16-PN160
Working Temperature: -29°C - +120°C
Technical Parameters And Characteristics
|
Product |
Ball Valve |
|
Nominal Diameter |
2 - 32 Inch (DN50 - DN800) |
|
Design Temp. |
Down to -29°C |
|
Design Pressure |
PN16-PN160 |
|
Material |
Carbon Steel |
|
Design Standard |
GB/T 12237 |
|
Face to Face |
JB/T 1686, GB/T 12221 |
|
Operation |
Lever |
|
Connection End |
FLANGE |
|
Test Standard |
GB/T 13927 |
|
Package |
Plywood |
|
Applicable Media |
Water, Steam, Oil |
|
Application |
The oil and gas industry |
|
Certificate |
ISO 9001, ISO 14001, API 6D, CE |
