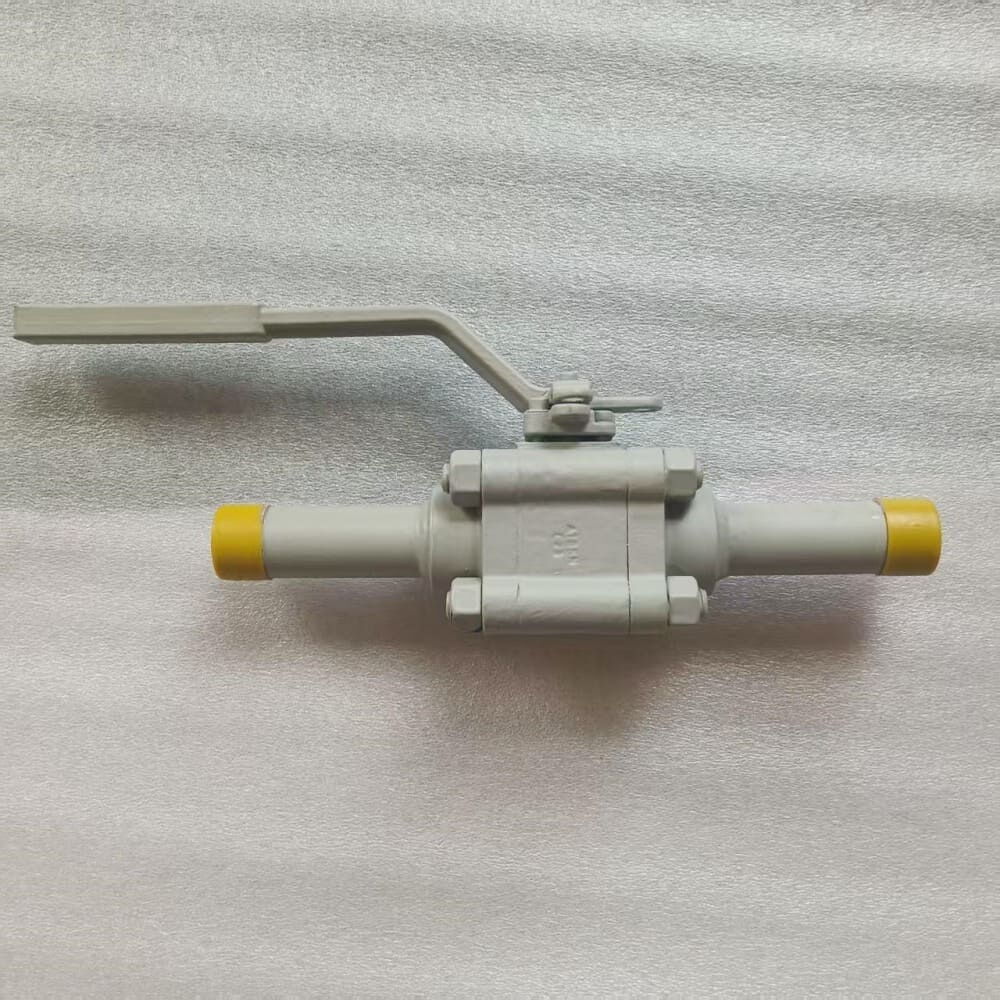

API 608 Floating Ball Valves, A105, 3/4 Inch, CL800 LB, NPT
- Model No.
- FBV-20251020
- Categories
- Ball Valves
- Tags
- API 608 Ball Valve , Floating Ball Valves , ASTM A105 Ball Valves
Detail Information
Valve Description:
Floating Ball Valve, ASTM A105, SW + 2 PE on Both Sides End 100mm Nipples,
3/4 Inch, 800 LB, Three-piece.
Design: API 608
Body: ASTM A105
Sizes: 3/4 Inch, DN20, 20mm
Nominal Class: 800 LB
End Connection: ASME B16.11
Operation: Lever
Face to Face: MFG'S
Test and Inspection: API 598
Product Range:
Body Material: Carbon Steel
Normal Diameter: 1/2 Inch - 2 Inch (DN15 - DN50)
End Connection: NPT
Pressure Rating: 150-1500LB
Working Temperature: -29°C - +120°C
Technical Parameters And Characteristics
|
Product |
Ball Valve |
|
Nominal Diameter |
1/2 Inch - 2 Inch (DN15 - DN50) |
|
Design Temp. |
Down to -29°C |
|
Design Pressure |
Class 150 LB - Class 1500 LB |
|
Material |
Carbon Steel |
|
Design Standard |
API 608 |
|
Face to Face |
MFG'S |
|
Operation |
Lever |
|
Connection End |
SW |
|
Test Standard |
API 598 |
|
Package |
Plywood |
|
Applicable Media |
Water, Steam, Oil |
|
Application |
The oil and gas industry |
|
Certificate |
ISO 9001, ISO 14001, TS |
