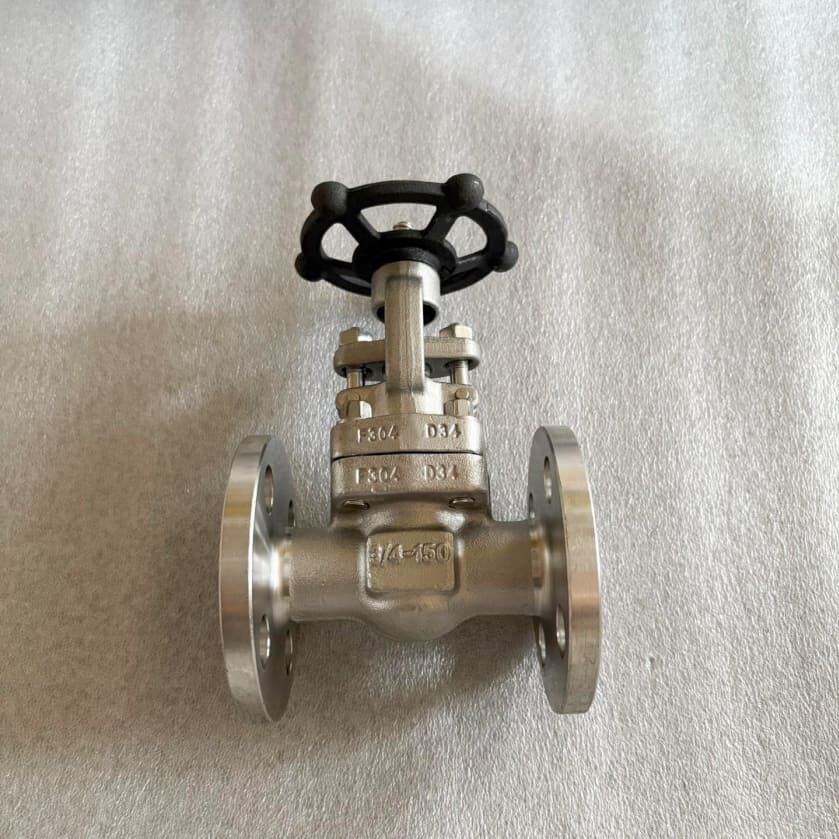

ASTM A182 F304 Gate Valve, API 602, 3/4 Inches, 150 LB, RF
We are a trusted stainless steel gate valve supplier in China, offering high-quality valves designed to API 602 standards. This model features a durable ASTM A182 F304 stainless steel body, sized at 3/4 inch with a Class 150 LB pressure rating. It is equipped with ASME B16.5 RF flanged ends for easy installation and a reliable outside screw and yoke (OS&Y) configuration for enhanced operational control. Ideal for a wide range of industrial applications, our gate valves deliver dependable performance, corrosion resistance, and long service life.
- Model No.
- GTV-20250524-02
- Categories
- Gate Valves
- Tags
- ASTM A182 F304 Gate Valve , API 602 Gate Valve , 3/4 Inch Gate Valves
Detail Information
Valve Description:
Gate Valve, ASTM A182 F304, RF, OS&Y.
Design: API 602
Body: ASTM A182 F304
Nominal size: 3/4 inches
Nominal class: 150 LB
End Connection: ASME B16.5 RF
Face to Face: ASME B16.10
Test and Inspection: API 598
Product Range:
Body Material: ASTM A182 F304
Normal Diameter: 1/2 - 24 Inch (DN15 - DN600)
End Connection: FLANGE, BW, SW, NPT
Pressure Range: 150-1500 LB (PN16 - PN250)
Working Temperature: -29°C - 300°C
Technical Parameters and Characteristics:
Product | GATE VALVE |
Nominal Diameter | 1/2 Inch - 24 Inch |
Design Temp. | Down to -29°C |
Design Pressure | PN16-PN250 |
Material | ASTM A182 F304 |
Design Standard | API 602 |
Face to Face | ASME B16.10 |
Connection End | FLANGE, BW, SW, NPT |
Test Standard | API 598 |
Package | Plywood |
Application | Water, Oil and Gas |
Certificate | ISO 9001, ISO 14001, ISO 45001, CE |
