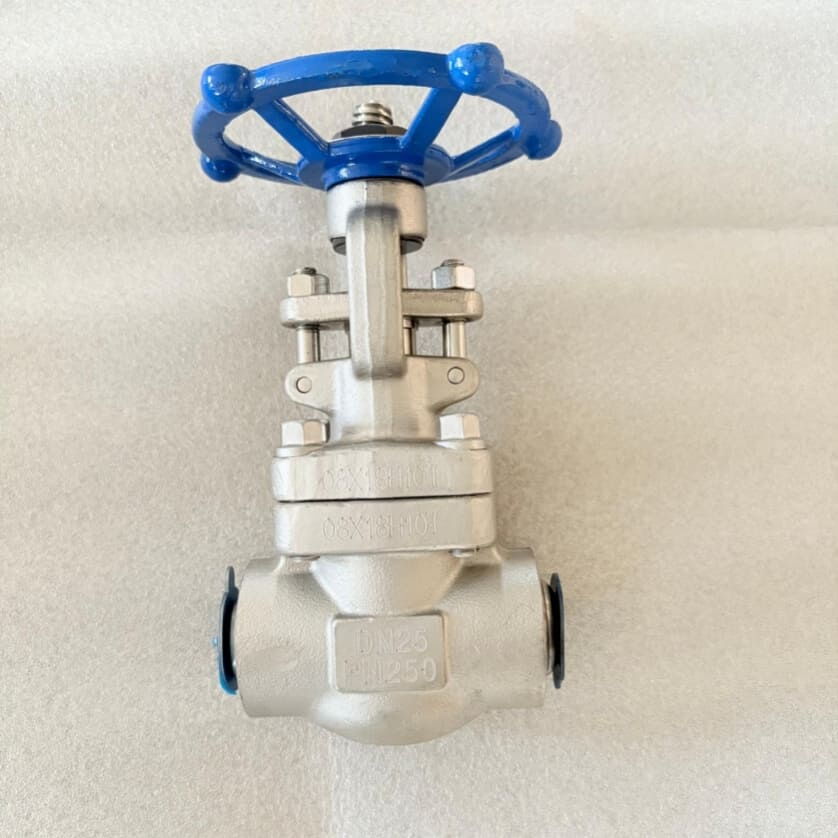

ISO 15761 Gate Valves, 08X18H10T, DN25, PN250, OS&Y, BW Ends
Our China-manufactured gate valves are designed in accordance with ISO 15761 standards and feature a robust 08X18H10T stainless steel body. With a nominal size of DN25 and pressure rating of PN250, these valves are ideal for high-pressure applications. They are configured with an outside screw and yoke (OS&Y) design and butt-weld (BW) ends for secure pipeline integration. Each valve undergoes stringent testing and inspection in compliance with standards, ensuring reliable performance and leak-tight operation in demanding industrial environments.
- Model No.
- GTV-2025024-01
- Categories
- Gate Valves
- Tags
- ISO 15761 Gate Valves, 08X18H10T Gate Valve, DN25 Gate Valve
Detail Information
Valve Description:
Gate Valve, 08X18H10T, BW, OS&Y, Rising Stem.
Design: ISO 15761
Body: 08X18H10T
Nominal Size: DN25
Nominal Class: PN250
End Connection: ASME B16.25 BW
Face to Face: MFG'S
Test and Inspection:
Product Range:
Body Material:Stainless Steel
Normal Diameter:1/2 - 24 Inch (DN15 - DN600)
End Connection: FLANGE, BW, SW, NPT
Pressure Range: 150-1500LB (PN16 - PN250)
Working Temperature: -29°C - 300°C
Technical Parameters And Characteristics:
Product Item | GATE VALVE |
Nominal diameter | 1/2 Inch -24Inch |
Design temp. | Down to -29°C |
Design pressure | PN16-PN250 |
Material | Stainless Steel |
Design standard | ISO 15761 |
Face to face | MFG'S |
Connection End | FLANGE, BW, SW, NPT |
Test Standard | |
Package | Plywood |
Application | water, oil and gas |
Certificate | ISO 9001, ISO 14001, ISO 45001, CE |
