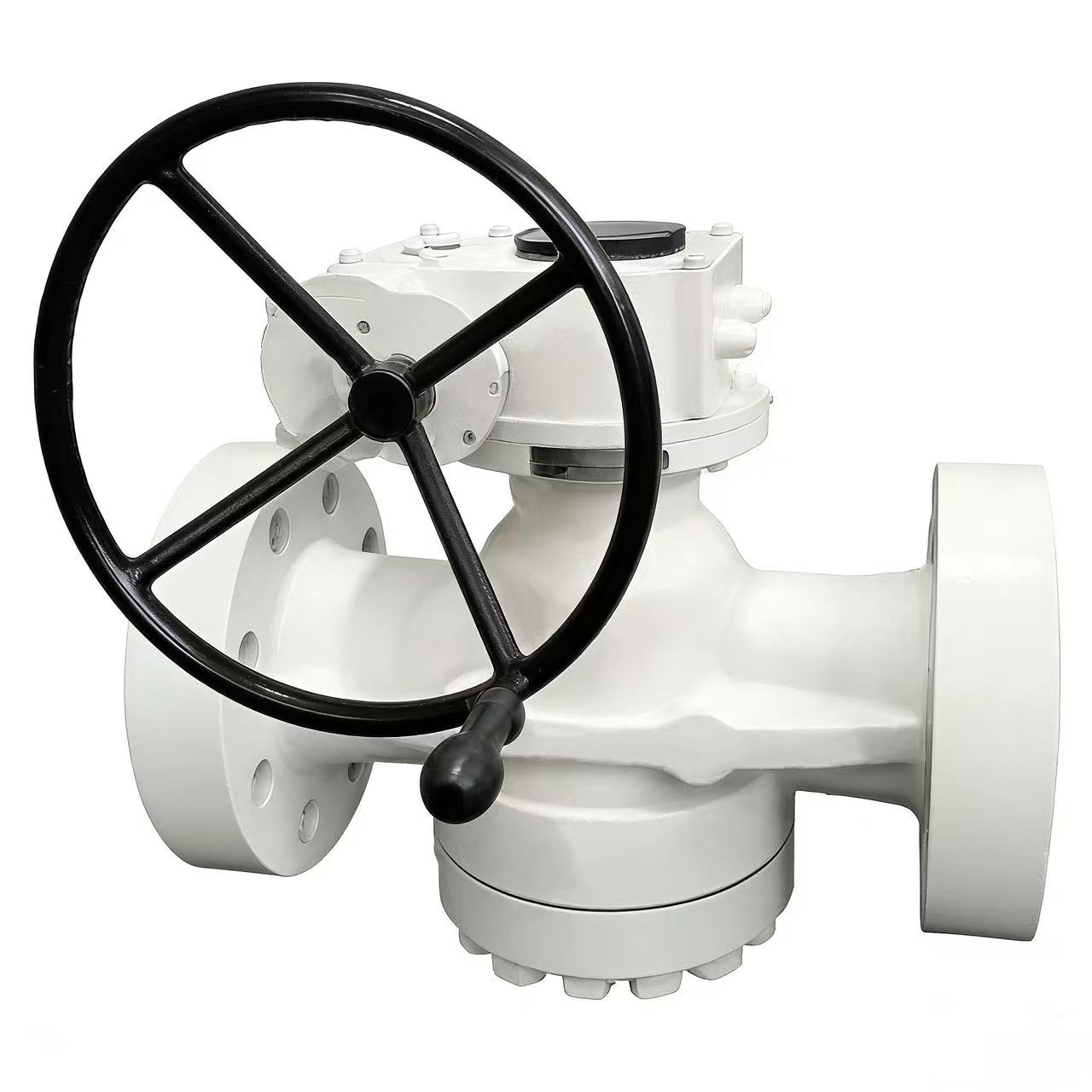

Eccentric Plug Valve, API 599, ASTM A351 CF8M, 3 Inch, CL300

This 3-inch (DN80) Soft-Sealed Plug Valve is designed for precise flow control and reliable sealing in demanding industrial applications. Constructed with an ASTM A351 CF8M body, it offers excellent corrosion resistance and long-term durability. Engineered to API 599 standards and rated Class 300 LB, the valve features flanged ends for secure installation and a worm gear operator for smooth, controlled operation. Its soft-sealed design ensures tight shutoff, minimizing leakage even under high pressure. As a leading Eccentric Plug Valve Supplier in China, we provide robust, high-quality valves that deliver dependable performance across chemical, oil, gas, and industrial piping systems.

Request a quote

Model No.: EPLV-20260331
Categories: Plug Valves
Tags: Eccentric Plug Valve , API 599 Plug Valves , ASTM A351 CF8M Plug Valve

Detail Information

Valve Description:
Worm Gear Operated Soft-sealed Eccentric Plug Valve, ASTM A351 CF8M, 3 Inch, 300 LB.
Design: API 599
Body: ASTM A351 CF8M.
Sizes: 3 Inch, DN80, 80 mm
Nominal Class: Class 300 LB.
End Connection: ASME B16.5
Face to Face: MFG'S.
Test and Inspection: API 598.
Connection End: FLANGE

Product Range:
Body Material: ASTM A351 CF8M.
Normal Diameter: 2 - 24 Inch (DN50 - DN600).
End Connection: Flanged, BW.
Pressure Rating: 150 LB-1500 LB
Working Temperature: -29°C - 120°C

Technical Parameters and Characteristics

Product	Worm Gear Plug Valve
Nominal Diameter	2 - 24 Inch (DN50 - DN600).
Design Temp.	Down to -29°C
Design Pressure	150 LB-1500 LB
Material	ASTM A351 CF8M
Design Standard	API 599
Face to Face	MFG'S
Connection End	FLANGE, BW
Test Standard	API 598
Package	Plywood
Applicable Media	Water, oil, gas, corrosive medium
Certificate	ISO 9001, ISO 14001, API 6D, CE
