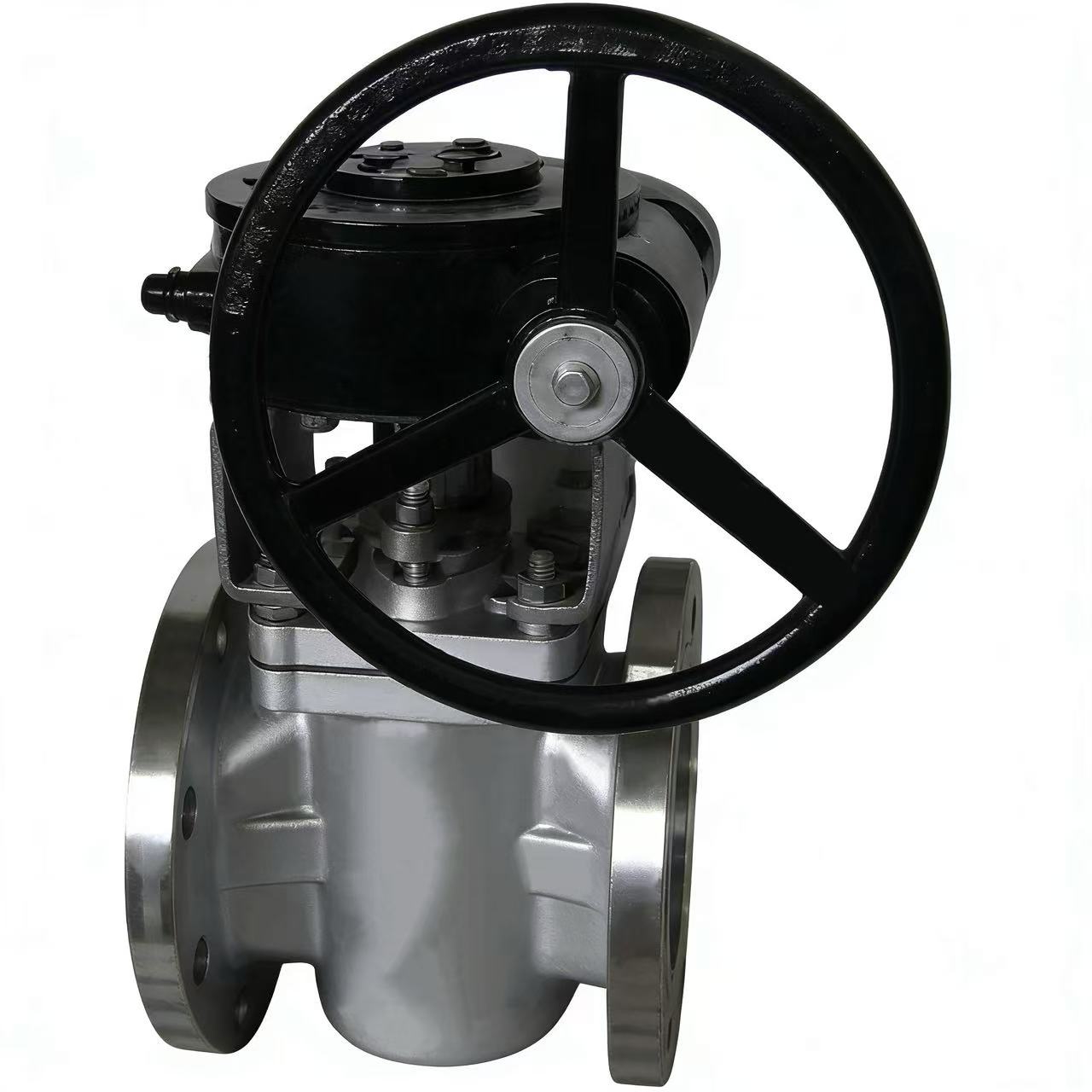

API 599 Lift Plug Valve, A351 CF8M, 3 IN, CL300, Hard-sealed
- Model No.
- PLV-20260401
- Categories
- Plug Valves
- Tags
- API 599 Plug Valves , Lift Plug Valve , ASTM A351 CF8M Plug Valve
Detail Information
Valve Description:
Metal Hard-sealed Lift Plug Valve, CF8M, 3 Inch, 300 LB, Flanged, Worm Gear Operated.
Design: API 599.
Body: ASTM A351 CF8M
Sizes: 3 Inch, DN80, 80 mm
Pressure Rating: Class 300 LB, PN50
End Connection: ASME B16.5
Face to Face: MFG'S.
Test and Inspection: API 598.
Product Range:
Body Material: ASTM A351 CF8M.
Normal Diameter: 2 Inch - 24 Inch (DN50 - DN600).
End Connection: Flanged, BW
Pressure Rating: 150 LB-1500 LB
Working Temperature: -29°C - 120°C
Technical Parameters and Characteristics
|
Product |
Lift Plug Valve |
|
Nominal Diameter |
2 - 24 Inch (DN50 - DN600). |
|
Design Temp. |
Down to -29°C |
|
Design Pressure |
150 LB-1500 LB |
|
Material |
ASTM A351 CF8M |
|
Design Standard |
API 599 |
|
Face to Face |
MFG'S |
|
Connection End |
FLANGE, BW |
|
Test Standard |
API 598 |
|
Package |
Plywood |
|
Applicable Media |
Water, oil, gas |
|
Certificate |
ISO 9001, ISO 14001, API 6D, CE |
