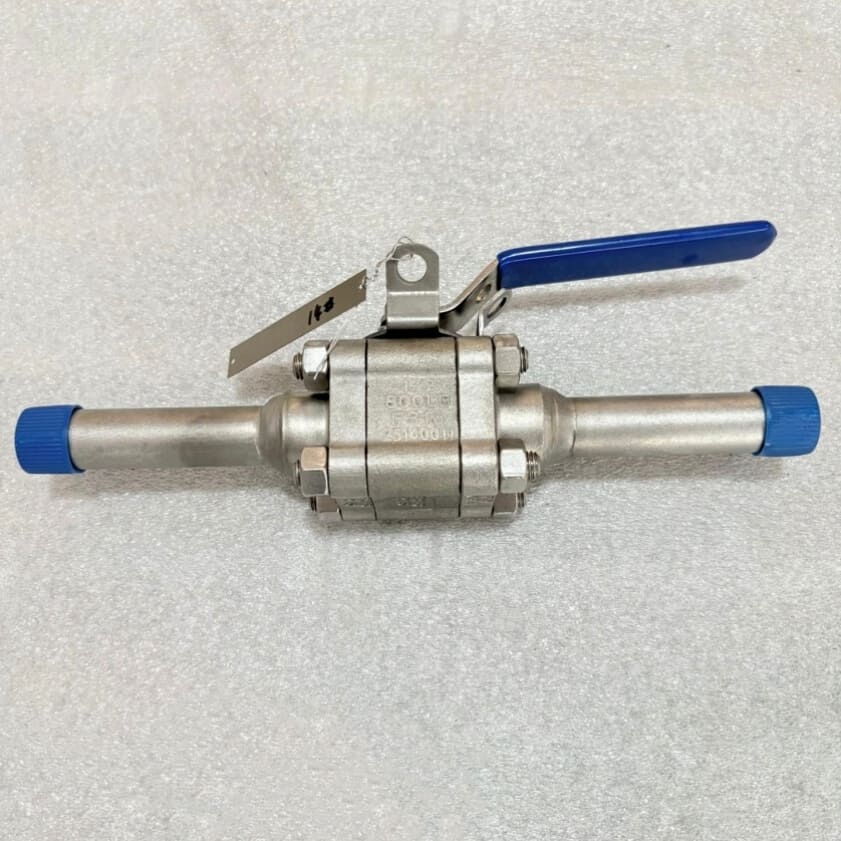

ASTM A182 F316 Floating Ball Valves, API 608, 3PC, 1/2 Inch

As a floating ball valve factory in China, we manufacture high-quality 3-piece valves designed in accordance with API 608 standards. Each valve features a corrosion-resistant ASTM A182 F316 stainless steel body, ideal for demanding industrial environments. With a 1/2 inch (DN15) size and pressure rating of Class 800 LB (PN130), this valve is built for high-pressure applications. It includes socket weld ends for secure, leak-tight connections and a lever handle for smooth manual operation. The 3-piece construction also allows for easy disassembly and maintenance, making it a reliable solution for fluid control systems.

Request a quote

Model no.: FBV-20250607-03
Categories: Ball Valves
Tags: ASTM A182 F316 Ball Valve , Floating Ball Valves , API 608 Ball Valve

Detail Information

Valve Description:
Floating Ball Valve, Three-piece, ASTM A182 F316, Socket Weld, Lever.
Design: API 608
Body: ASTM A182 F316.
Nominal Size: 1/2 Inch
Nominal class: Class 800 LB
End Connection: ASME B16.11 SW
Operation: Lever
Face to Face: MFG'S
Test and Inspection: API 598

Product Range:
Body Material: Stainless Steel
Normal Diameter: 1/2 Inch - 12 Inch (DN15 - DN300)
End Connection: BW/SW/NPT
Pressure Rating: 150-1500 LB(PN16-PN250)
Working Temperature: -29°C - +300°C

Technical Parameters And Characteristics

Product Item	Ball Valve
Nominal Diameter	1/2 - 24 Inch (DN15 - DN600)
Design Temperature	Down to -29°C
Design Pressure	Class 150 LB - 1500 LB
Material	Stainless Steel
Design Standard	API 608
Face to Face	MFG'S
Operation	Lever
Connection End	FLANG/SW
Test Standard	API 598
Package	Plywood
Applicable Media	Water, Steam, Oil, Natural Gas
Application	The oil and gas industry
Certificate	ISO 9001, ISO 14001, TS
