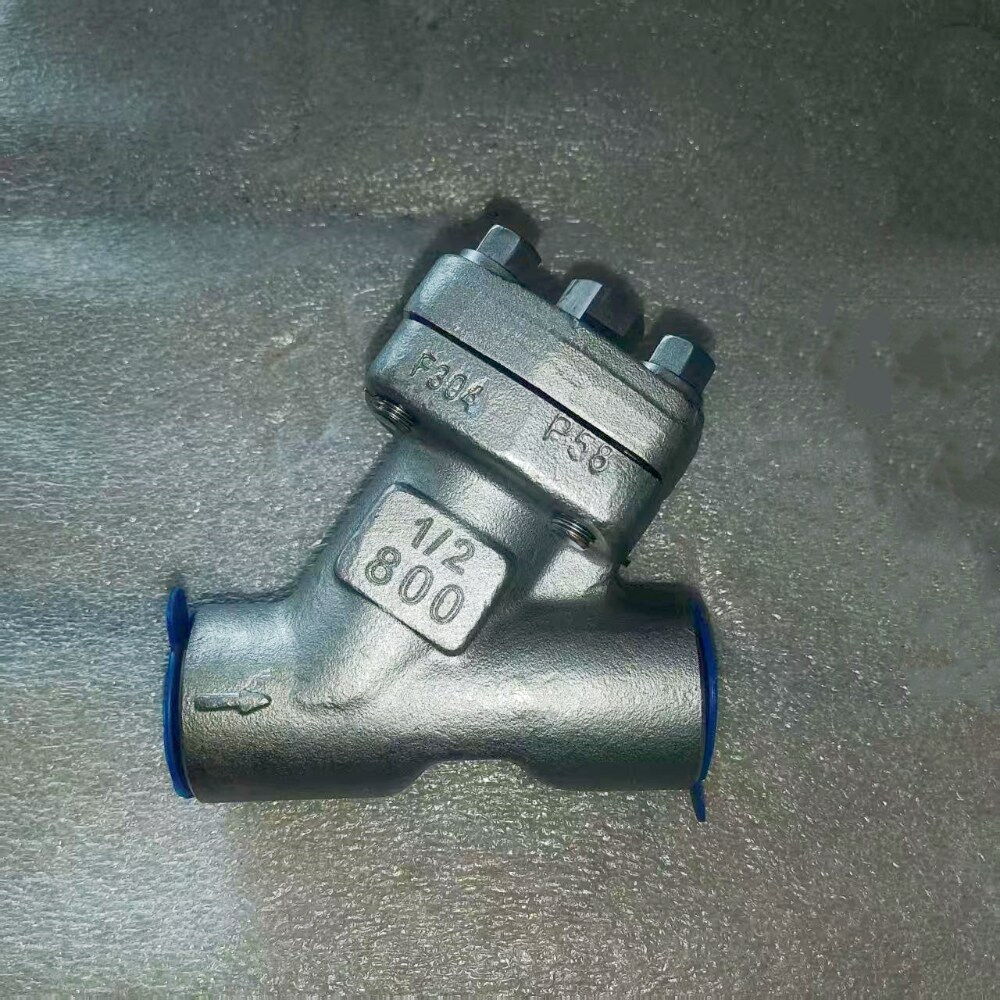

ASTM A182 F304 Y Check Valve, ASME B16.34, 1/2 IN, CL800, SW

As a leading Y Type Check Valve manufacturer in China, we provide high-quality valves engineered to meet ASME B16.34 standards. This model features a robust stainless steel ASTM A182 F304 body, ensuring excellent durability and resistance to corrosion. Designed in a compact size of 1/2 inch (DN15, 15 mm), it is ideal for applications requiring precise flow control. With a pressure rating of Class 800 LB, the valve offers reliable performance under demanding operating conditions. Its socket welding end connection provides secure installation and leak-tight integrity for long-term service reliability.

Request a quote

Model No.: CKV-20250920
Categories: Check Valves
Tags: ASTM A182 F304 Check Valves , Y Type Check Valves , ASME B16.34 Check Valve

Detail Information

Valve Description:
Y Type Check Valve, Socket Welding, ASTM A182 F304.
Design: ASME B16.34
Body: ASTM A182 F304
Nominal Size: 1/2 Inch, DN15, 15 mm
Nominal Class: 800 LB
End Connection: ASME B16.11 SW
Face to Face: MFG'S
Test and Inspection: API 598

Product Range:
Body Material: Stainless Steel
Normal Diameter: 1/2 Inch - 3 Inch (DN15 - DN80)
End Connection: FLANGE, BW, SW, NPT
Pressure Range: 150 LB - 2500 LB (PN16 - PN420)
Working Temperature: -29°C - 425°C

Technical Parameters And Characteristics:

Product Item	Y Type Check Valve
Nominal Diameter	1/2 Inch - 3 Inch
Design Temp	Down to -29°C
Design Pressure	PN16-PN420
Material	Stainless Steel
Valve Body	Stainless Steel
Design Standard	ASME B16.34
Face to Face	MFG’S
Connection End	FLANGE, BW, SW, NPT
Test Standard	API 598
Package	Plywood
Application	water, oil and gas
Certificate	ISO 9001, ISO 14001, ISO 45001, CE
