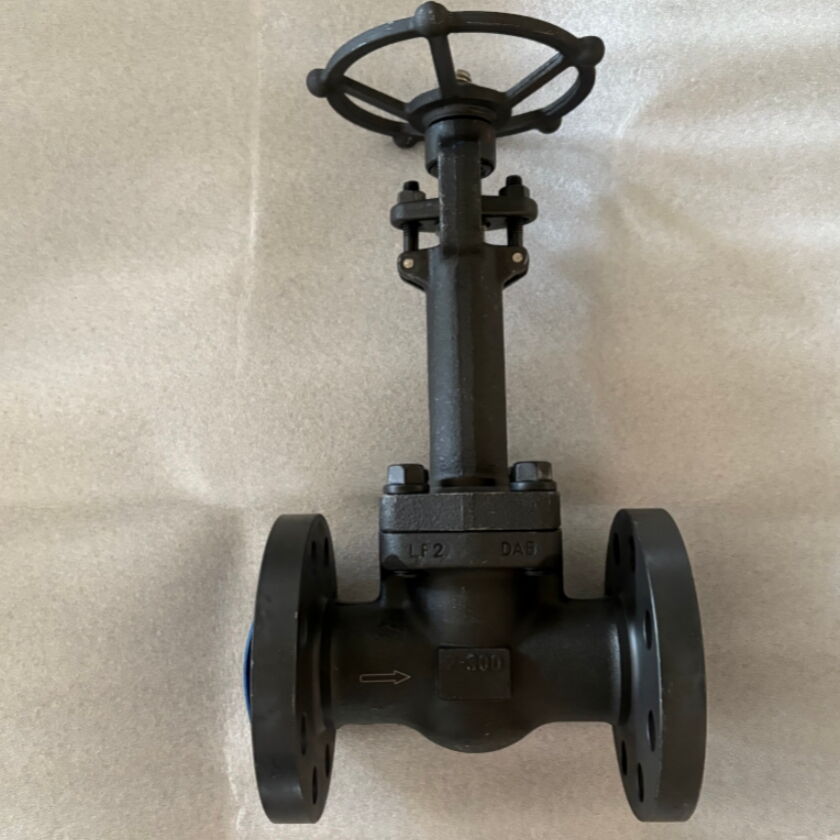

API 602 Globe Valves, ASTM A350 LF2, 2 Inches, CL300 LB, RF
China Globe Valve Manufacturer offers a high-quality 2-inch globe valve featuring an extended stem design, built to API 602 standards. The valve body is made from ASTM A350 LF2 material, ensuring excellent performance in low-temperature applications. Rated for Class 300 LB pressure, it comes with raised face (RF) flanged ends for secure and reliable connections. Operated manually via a handwheel, this globe valve is ideal for precision flow control in demanding industrial environments.
As a leading globe valve manufacturer in China, we ensure reliable quality and performance.
Model no.
- GLV-20250519-01
Categories
- Globe Valves
Tags
- API 602 Globe Valve , ASTM A350 LF2 Globe Valve , 2 Inch Globe Valve
Detail Information
Valve Description:
Globe Valve, Handwheel, ASTM A350 LF2, RF, Extended Valve Stem.
Design: API 602
Body: ASTM A350 LF2
Nominal Size: 2 Inches
Nominal Class: 300 LB
End Connection: ASME B16.5
Operation: Handwheel
Face to Face: ASME B16.10
Test and Inspection: API 598
Product Range:
Body Material: ASTM A350 LF2
Normal Diameter: 1/2 - 24 inches (DN15 - DN600)
End Connection: BW, Flange, SW, NPTF
Pressure Range: 150 - 2500 LB (PN16 - PN420)
Working Temperature: -45°C - +300°C
Technical Parameters And Characteristics
|
Product Item |
Globe Valve |
|
Nominal Diameter |
1/2 - 24 Inch |
|
Design Temp. |
Down to -45°C |
|
Design Pressure |
Class 150 - 2500 LB |
|
Material |
ASTM A350 LF2 |
|
Design Standard |
API 602 |
|
Face to Face |
ASME B16.10 |
|
Operation |
Handwheel |
|
Connection End |
BW, Flange, SW, NPTF |
|
Test Standard |
API 598 |
|
Package |
Plywood |
|
Application |
The Oil and Gas Industry |
|
Certificate |
ISO 9001, ISO 14001, CE and TS |
