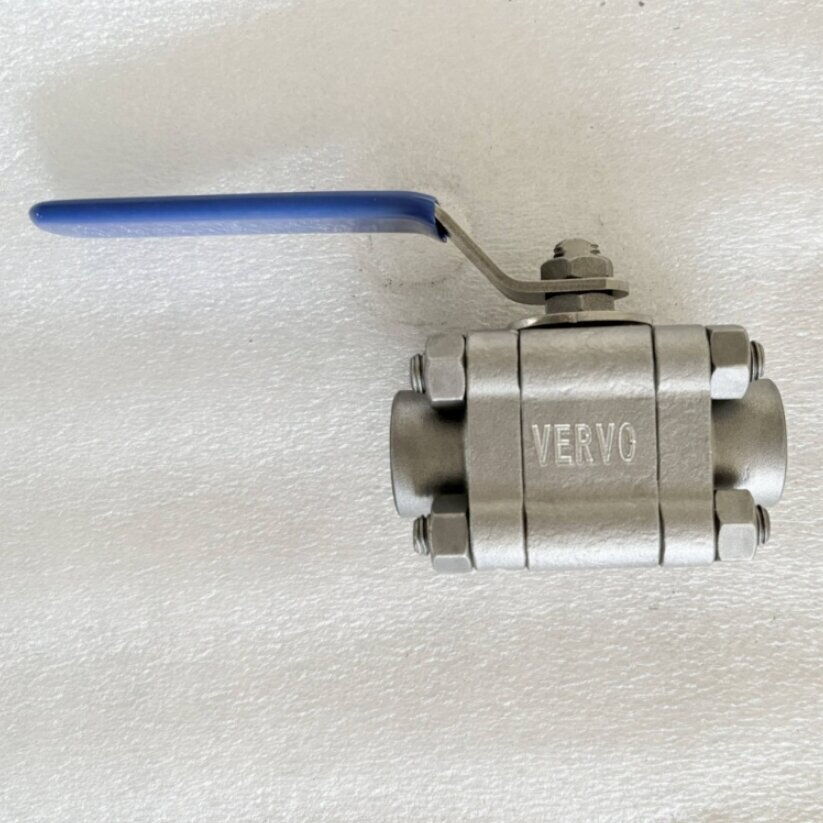

ASTM A350 LF2 Floating Ball Valve, API 608, 1 IN, 800 LB, SW
We are a leading floating ball valve factory in China, specializing in high-quality valves built to API 608 standards. Our valves feature a durable carbon steel ASTM A350 LF2 body, available in 1-inch size with a Class 800 LB pressure rating. Designed with a full bore for optimal flow capacity, these three-piece floating ball valves are equipped with socket weld (SW) ends for secure installation. The lever-operated mechanism ensures precise and efficient flow control. Ideal for demanding industrial applications, our valves deliver long-lasting performance and exceptional reliability.
Model no.
- FBV-20250428-03
Categories
- Ball Valves
Tags
- ASTM A350 LF2 Ball Valve , 1 Inch Ball Valve , Floating Ball Valves
Detail Information
Full Bore Floating Ball Valves, API 608, SW.
Valve Description:
Floating Ball Valve, Forged, Full Bore, Three-piece, SW.
Design: API 608
Body: ASTM A350 LF2
Nominal Size: 1 Inch, DN25
Nominal Class: 800 LB, PN130
End Connection: ASME B16.11 SW
Operation: Lever
Face to Face: MFG'S
Test and Inspection: API 598
Product Range:
Body Material: ASTM A350 LF2
Normal Diameter: 1/2 Inch - 4 Inch (DN15 - DN100)
End Connection: NPT/SW/RTJ/RF/FF
Pressure Rating: 150 to 1500 (PN10 to PN250)
Working Temperature: -29°C - +120°C
Technical Parameters And Characteristics
|
Product Item |
Ball Valve |
|
Nominal Diameter |
1/2 Inch - 4 Inch (DN15 - DN100) |
|
Design Temp. |
Down to -29°C |
|
Design Pressure |
Class 150 LB - 1500 LB |
|
Material |
ASTM A350 LF2 |
|
TRIM |
ASTM A182 F304 |
|
Bore |
Full/Reduced |
|
Design Standard |
API 608 |
|
Face to Face |
MFG’S |
|
Operation |
Lever |
|
Connection End |
NPT/SW/RTJ/RF/FF |
|
Test Standard |
API 598 |
|
Package |
Plywood |
|
Applicable Media |
Water, Steam, Oil, Natural Gas, etc |
|
Application |
The oil and gas industry |
|
Certificate |
ISO 9001, ISO 14001, TS |
