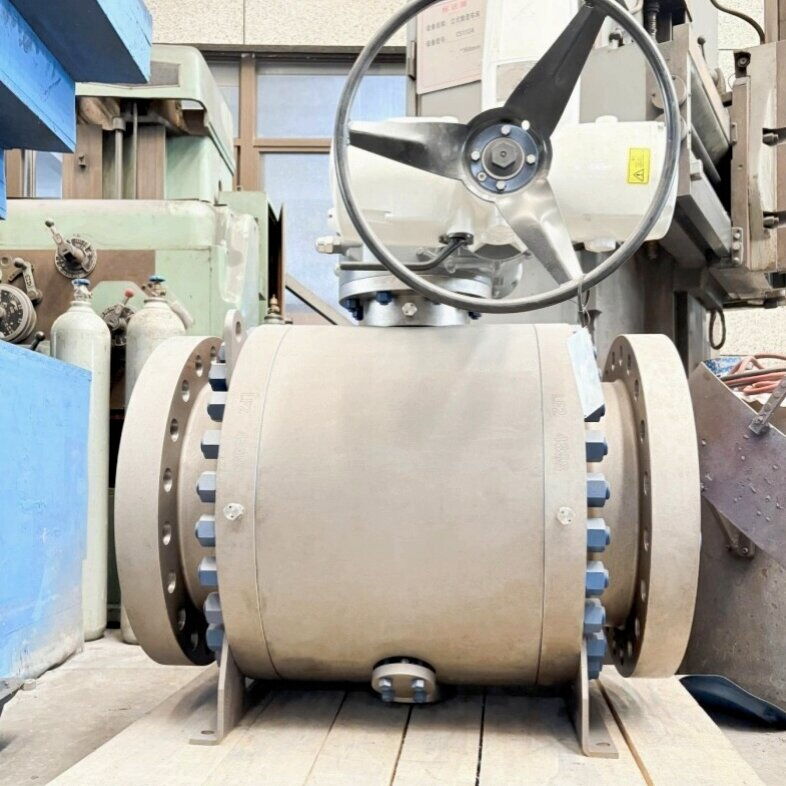

API 6D Trunnion Ball Valves, ASTM A350 LF2, 18 Inch, 600 LB
We are a trusted trunnion ball valve supplier in China, offering high-performance valves engineered to API 6D standards. This 18-inch valve features a full-bore design for maximum flow efficiency and a durable ASTM A350 LF2 carbon steel body. Rated for Class 600 LB, it includes ASME B16.5 RF flanged ends for secure, high-pressure connections. The valve is fitted with RPTFE seats for excellent chemical resistance and long service life. Gear-operated for smooth and precise control, this valve is ideal for critical applications in oil, gas, and industrial systems.
Model no.
- TBV-20250510-02
Categories
- Ball Valves
Tags
- API 6D Ball Valve , Trunnion Ball Valves , ASTM A350 LF2 Ball Valve
Detail Information
Valve Description:
Ball Valve, Low Temperature Steel, RPTFE, Full-bore, Trunnion Mounted, Gear Operation.
Design: API 6D
Body: ASTM A350 LF2
Nominal Size: 18 Inches
Nominal Class: 600 LB
End Connection: ASME B16.5, RF
Operation: Gear
Face to Face: ASME B16.10
Test and Inspection: API 598
Product Range:
Body Material: ASTM A350 LF2
Normal Diameter: 6 - 24 inches (DN150 - DN600)
End Connection: RF/RTJ
Pressure Rating: 150 LB-1500 LB(PN16-PN250)
Working temperature: -46°C - +120°C
Technical Parameters And Characteristics
|
Product Item |
Ball Valve |
|
Nominal Diameter |
6 - 24 inches(DN150 - DN600) |
|
Design Temp. |
Down to -46°C |
|
Design Pressure |
150 LB-1500 LB(PN16-PN250) |
|
Material |
ASTM A350 LF2 |
|
Design Standard |
API 6D |
|
Face to Face |
ASME B16.10 |
|
Operation |
Gear |
|
Connection End |
FLANGE |
|
Test Standard |
API 598 |
|
Package |
Plywood |
|
Applicable Media |
Water, Steam, Oil, Natural Gas |
|
Application |
The oil and gas industry |
|
Certificate |
ISO 9001, ISO 14001, TS |
