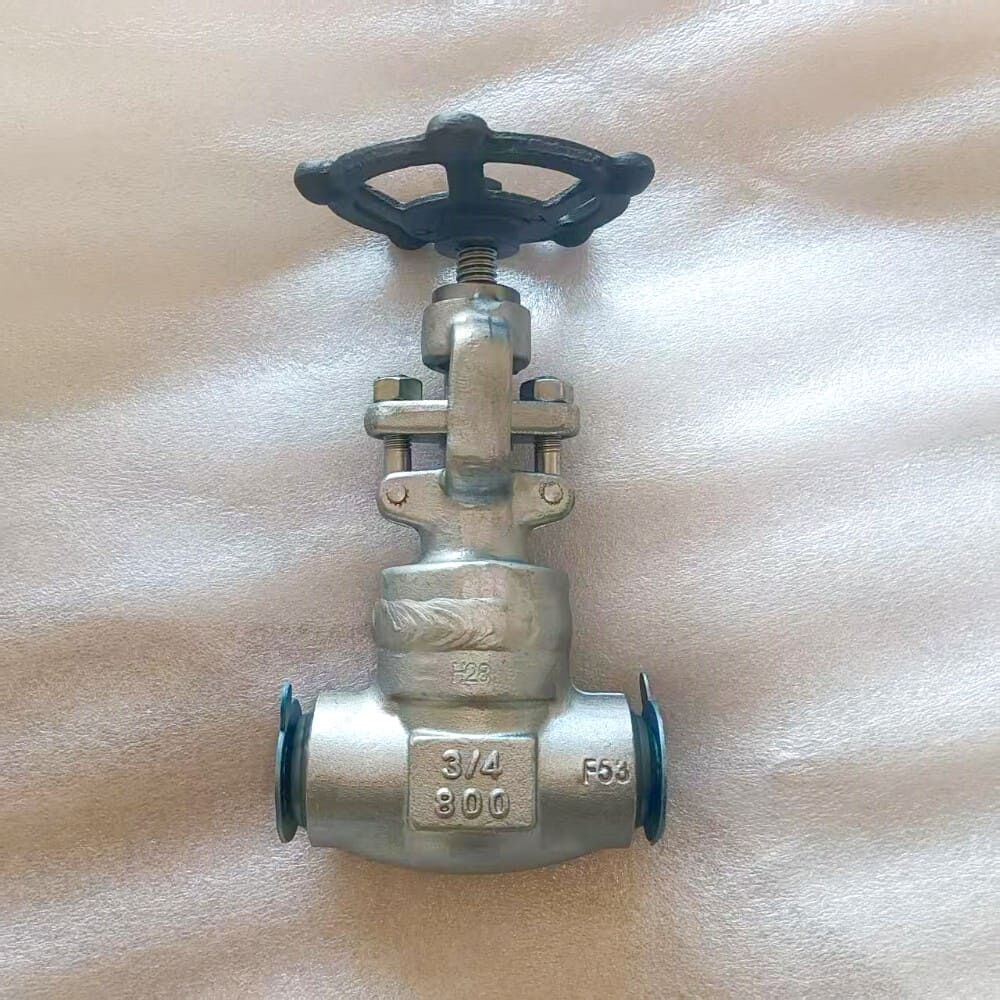

API 602 Gate Valves, ASTM A182 F53, 3/4 Inch, CL800 LB, OS&Y

As a trusted China duplex stainless steel gate valve supplier, we offer high-quality valves designed for demanding industrial applications. Manufactured in compliance with API 602 standards, this gate valve is crafted from ASTM A182 F53 duplex stainless steel, ensuring exceptional corrosion resistance and durability. With a 3/4-inch size and rated at Class 800 LB, it features an outside screw and yoke (OS&Y) design, butt welding ends, and a welded bonnet for reliable sealing. Easy handwheel operation provides smooth control, making it ideal for high-pressure, high-temperature service conditions.

Request a quote

Model No.: GTV-20250908
Categories: Gate Valves
Tags: API 602 Gate Valve , ASTM A182 F53 Gate Valve , 3/4 Inch Gate Valves

Detail Information

Valve Description:
ASTM A182 F53 Gate Valve, BW, WB, OS&Y, Handwheel.
Design: API 602
Body: ASTM A182 F53
Nominal Size: 3/4 Inch
Nominal Class: 800 LB
End Connection: ASME B16.25
Face to Face: MFG'S
Test and Inspection: API 598

Product Range:
Body Material: Duplex Stainless Steel
Normal Diameter: 1/2 Inch - 4 Inch (DN15 - DN100)
End Connection: FLANGE, BW, SW, NPT
Pressure Range: 150 LB-2500 LB (PN16 - PN420)
Working Temperature: -29°C - 300°C

Technical Parameters And Characteristics:

Product	Gate Valve
Nominal Diameter	1/2 Inch -4 Inch
Design Temp.	Down to -29°C
Design Pressure	PN16 - PN420
Material	Duplex Stainless Steel
Design Standard	API 602
End Connection	ASME B16.25
Face to Face	MFG'S
Connection End	FLANGE, BW, SW,NPT
Test Standard	API 598
Package	Plywood
Application	water, oil and gas
Certificate	ISO 9001, ISO 14001, ISO 45001, CE
